    Electric Drive Horizontal Multistage Pump Side Channel Type High Pressure

    Ask Lasest Price
    Brand Name : Yuzhou
    Model Number : LPGP-65
    Certification : ISO/SGS/CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 500 sets per month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Electric Drive Horizontal Multistage Pump Side Channel Type High Pressure

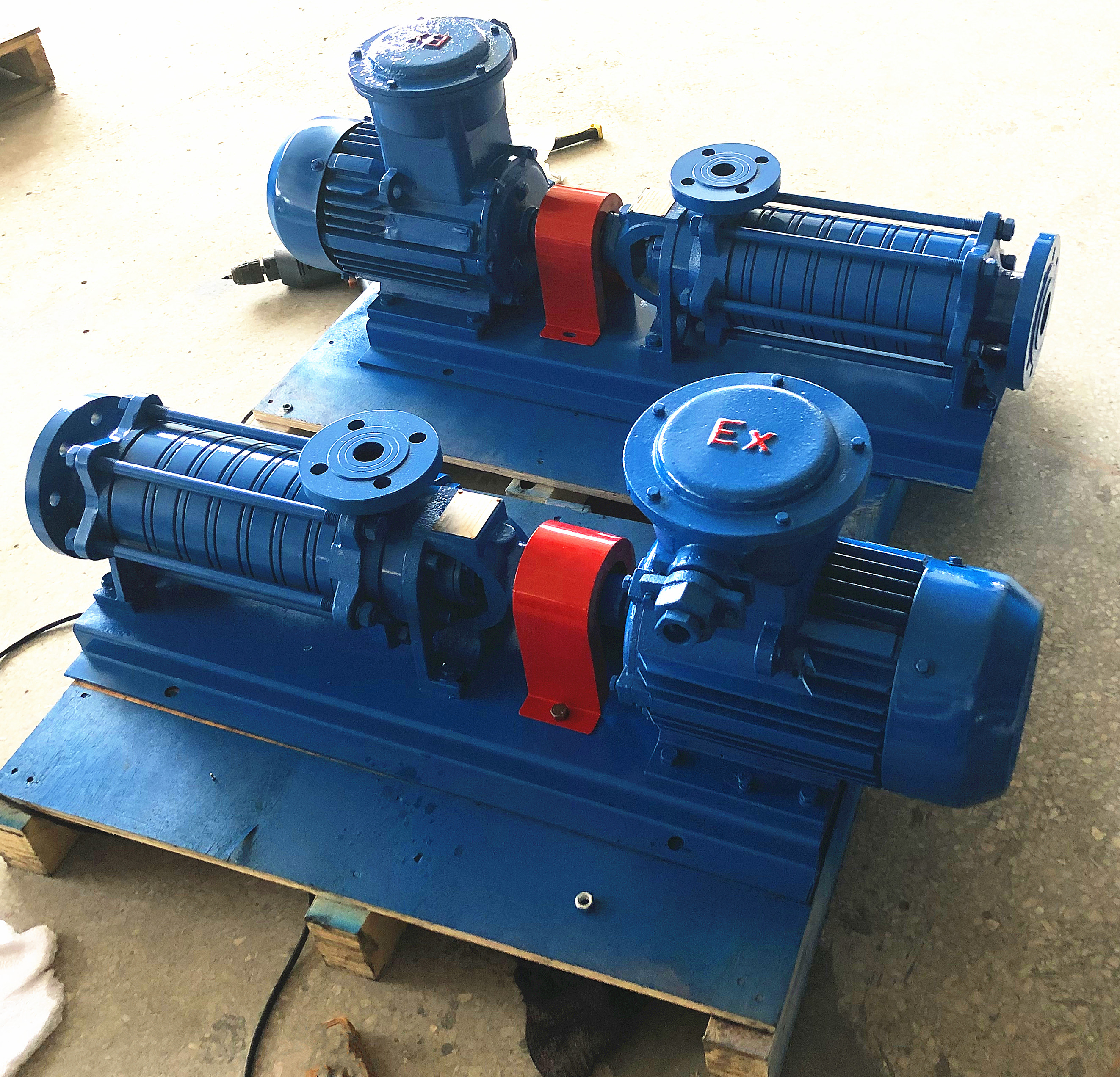

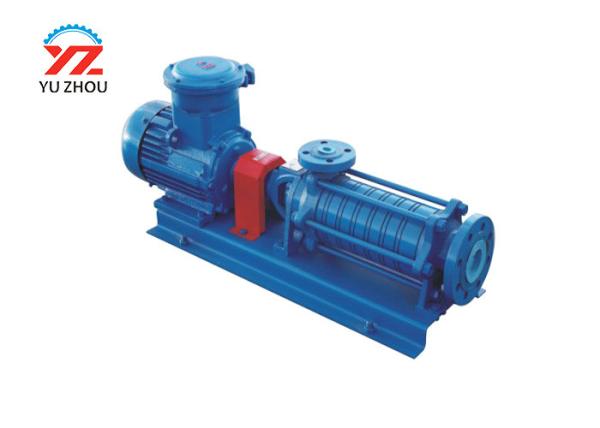

    LPGP electric drive explosion proof motor gas side channel multistage pump


    The centrifugal and side channel multistage pump, having a horizontal configuration, designed with 6 stages and 8 stages,shaft sealing by mechanical seal without cooling.For handing LPG (liquid gas).the liquids involving high differential pressure,low NPSH conditions and aerated liquids up to 50% gas,such as pumping from tanks.The use of a pre-compression turbine at the suction end makes it possible to obtion a very small required NPSH,so that this pressure can be used under very difficult suction conditions.


    Application :


    1. LPG cylinder filling.
    2. Pumping LPG from underground storage.
    3. Bulk filling operations.
    4. Loading/unloading of bulk trucks and transport trailers.


    Technical Specification:


    ModelLPGP-65LPGP-85
    Direction of RotationAnti-clockwise facing the end of the pumpdrive shaft
    Max working pressure2.5Mpa
    Speed1450r/min
    Power4kw 380v 50hz5.5380v 50hz
    Ambient temperature-30℃ to 60 ℃
    Stage6 stages8 Stages
    Flow rate4.5m3/h5.5m3/h
    Connecting flangesInlet 65mm ,Outlet:25mm
    BearingsPump and sliding bearing,ball bearing drive end
    LubricationSilding bearing lubrication by pump medium pump end, drive the ball bearing lubrication.
    MOQ1 Set
