FSB Chemical Centrifugal Pump , Corrosive Resisting Acid Transfer Pump

Ask Lasest Price
Brand Name :	Yuzhou
Model Number :	FSB
Certification :	ISO/SGS/CE
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	500 sets/month
Delivery Time :	3-7 working days
MOQ :	One Set

Add to Cart

Product Details
Company Profile

FSB Chemical Centrifugal Pump , Corrosive Resisting Acid Transfer Pump

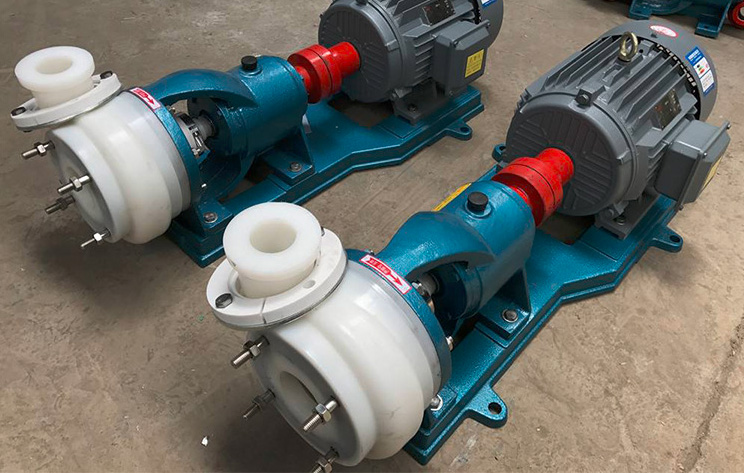

FSB fluorine plastics chemical centrifugal pump/acid pump/PTFE pump

1. The pump can long-term transport any medium with any concentration not containing solid particles : acids, alkalis and other corrosive media oxidant (It is forbidden to deliver the rapid hard crystals).

2. The overcurrent parts are all made of fluorine plastics alloys.

3. it has the advantages of strong corrosive-resisting,high mechanical strength, non aging, non-poisonous and without decomposition.

4. This type product has the features of reasonable design,compact structure,reliable performance,easy to use and saving energy,etc.

5. The production of the pump strictly goes with all kinds of specified rules,check and accept one by one to makes sure the quality.

6. This type pump is widely used in the fields of chemical industry,petrol,medicine,pesticide,dye,smelting,paper making,plating,and food,etc.

7. It earns a good name of corrosive-resisting since entering the market. It eliminates runing, risking, dripping, leakage.

Item	Fluorine plastic pump for sulfuric acid
Fluorine plastic pump	FSB type anticorrosive fluorine plastic pump
Model	FSB
Material	Fluorine plastic and customized
Color	Blue and adjustable
Mode	Horizontal
Drive	Belt or coupling
Seal	Soft packing seal or mechanical seal
Speed	2900r/min,1450r/min
Theory	Centrifugal pump
Structure	Single stage pump
Usage	Corrosive fluid
Power	Electric
Standard or Nonstandard	Standard
Application	chemical, petro-chemical, paper making, power station
Outlet diameter	25-200mm
Capacity	1.5-200m³/h
Head	10-64m
Power	1.5-55kw
Warranty	1year
Certificate	ISO9001
OEM	Acceptable
Feature	Mechanical seal, performance reliable, high corrosive

Technical data:

Model	Capacity	Head	Inlet	Outlet	Power	Speed	Suction	Efficiency
Model	(m3/h)	(m)	(mm)	(mm)	(KW)	(r/min)	(m)	(%)
25FSB-10L	1.5	10	25	20	2.2	2900	6	29
25FSB-18L	3.6	18	25	20	2.2	2900	6	27
40FSB-15L	10	15	40	32	3	2900	6	40
40FSB-20L	10	20	40	32	3	2900	6	42
40FSB-30L	10	30	40	32	3	2900	6	38
40FSB-40L	10	40	40	32	4	2900	5.5	35
40FSB-50L	10	50	40	32	5.5	2900	5	33
50FSB-20L	15	20	50	40	4	2900	6	51
50FSB-25L	15	25	50	40	4	2900	6	49
50FSB-30L	15	30	50	40	4	2900	6	44.5
50FSB-40L	15	40	50	32	5.5	2900	5.5	35
50FSB-50L	15	50	50	32	7.5	2900	5.5	33
65FSB-32L	29	32	65	50	5.5	2900	6	57
65FSB-40L	29	40	65	40	7.5	2900	5.5	53
65FSB-50L	29	50	65	40	11	2900	5.5	46
80FSB-20L	50	20	80	65	7.5	2900	6	69
80FSB-30L	50	30	80	65	7.5	2900	5.5	64
80FSB-34L	50	34	80	65	11	2900	5.5	64
80FSB-38L	50	38	80	50	11	2900	5.5	60
80FSB-50L	50	50	80	50	15	2900	6	53
80FSB-80L	50	80	80	50	22	2900	5.5	36
100FSB-32L	100	32	100	80	18.5	2900	5.5	70
100FSB-40L	100	40	100	80	22	2900	5.5	70
100FSB-50L	100	50	100	65	30	2900	5.5	62
125FSB-32L	200	32	125	80	30	2900	5.5	72
125FSB-50L	200	50	125	100	45	2900	5.5	64
