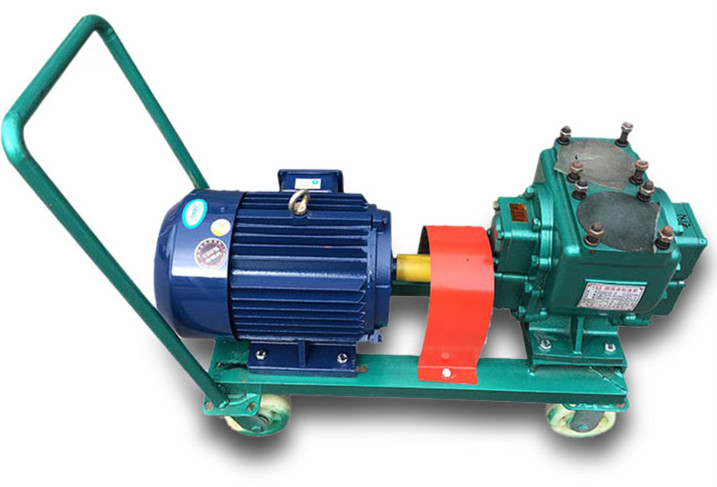

    YHCB Series Movable Circular Arc Gear Oil Transfer Pump With Trolley

    Ask Lasest Price
    Brand Name : Yuzhou
    Model Number : YHCB
    Certification : ISO/SGS/CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 500 sets per month
    Delivery Time : 2-5 working days
    • Product Details
    • Company Profile

    YHCB Series Movable Circular Arc Gear Oil Transfer Pump With Trolley

    YHCB Series Movable Circular Arc Gear Oil Transfer Pump With Trolley


    YHCB Series Circular Arc Gear Oil Transfer Pump is mainly for carrying the various fluids with the viscosity of 5-1500c.s.t and without the solid particles and non corrosion.For example:Gasoline,kerosene and diesel fuel and mechanical lubricator.so that,it's the Premium choice for the tank truck and petroleum corporations.


    YHCB Series Circular Arc Gear Oil Transfer Pump adopting double circular gear is the latest products necessary to the development of industrial oil-pump,which is of a special gear pump with high efficiency and has the following merits such as large flux,high lift,small volume,low noise,low rotary speed for input,strong self priming,convenient mounting and maintaining and so on.


    Technical parameters:

    Type

    Q Flow

    m3/h

    Working Pressure

    Mpa

    Speed

    rpm

    Power

    kw

    50YHCB-880.49603
    60YHCB-15150.49604
    60YHCB-30280.49605.5
    60YHCB-50450.4143011
    65YHCB-35350.69607.5
    76YHCB-40400.69607.5
    80YHCB-60600.696011
    80YHCB-80800.496015
    100YHCB-1001000.496022
    125YHCB-1501500.496037
    150YHCB-2002000.496055

    Trouble shooting

    At start-up

    Check pump rotation is correct (2-3 seconds).

    Check flushing liquid to seal or gland is available at the pump.

    Check for alignment and a dust free coupling.

    Failure phenomenonTrouble shooting
    No liquid delivered

    (a) Pump not primed.

    (b) Suction lift too high. Check with a gauge at the pump suction

    (c) Wrong direction of rotation

    (d) Pump not rotating (failure of drive from prime mover)

    (e) Suction & Delivery pipes connected on wrong sides of pump


    Not enough liquid delivered

    (a) Air leaks in suction or through stuffing box

    (b) Speed too low

    (c) Suction lift too high, or not enough suction head (for hot liquids)

    (d) Foot valve too small or obstructed

    (e) Foot valve or end of suction pipe not immersed deeply enough

    (f) Piping improperly installed permitting air or gas to pocket in pump

    (g) Mechanical defects: Pump damaged, Pump badly worn

    Packing defective

    (h) Relief valve not seating or jammed by foreign matter.

    (i) Relief valve set for too low a pressure.


    Pump works for a while then loses suction

    (a) Leaky suction lines

    (b) Suction lift too high

    (c) Air or gases in the liquid

    Pump takes too much power

    (a) Speed too high

    (b) Liquid heavier or more viscous than we quoted for

    (c) Suction or discharge line obstructed

    (d) Mechanical defects Shaft bent Rotating element binds

    Stuffing boxes too tight Misalignment due to improper connection of pipe lines or driver

    (g) Check pressure is being measured at the pump and not some distance away from the pump thus ignoring pressure losses in piping, valves, etc.

    (h) Discharge pressure higher than quoted for.

    Noisy pump

    (a) Speed too high

    (b) Suction lift or viscosity too high (piping diameter too small) preventing filling of gear tooth spaces

    (c) Wrong direction of rotation (Note: recesses in the pump covers to prevent hydraulic noise operate only in one direction)

    (d) Badly supported pipes or bed-plates causing resonant vibration. Rubber mounting can help.

    (e) Relief valve chattering

    (f) Pressure too low: an increase in pressure can prevent gear noise in low pressure applications

    (g) Worn pump, check for wear

    Excessive Gland leakage

    (a) Packing hard and shafts scored

    (b) Pressure on pump too high or pressure relief passage blocked

    (c) Shaft run out excessive

    (d) When repacking a gland all the old packing must be removed. It is not good enough just to add extra rings as the original packing becomes compressed

    Excessive wear

    (a) Abrasive liquid / Contaminated liquid

    (b) Excessive speed

    (c) Misalignment

    (d) Excessive loading on drive shaft, axial or radial

    (e) Pump is running dry

    (f) Viscosity less than stated

    Motor running hot and overheating

    (a) Back pressure too great

    (b) Incorrect supply voltage

    (c) Motor phasing

    (d) Pump operating outside temperature range

    (e) Air temperature too high

    (f) Motor covered in dust

    (g) Electrical connections not correct for starting method

    (h) Natural ventilation blocked

    Pump overheating

    (a) Re-circulating small amount of liquid

    (b) Over tight gland

    (c) Running dry

    (d) Pump out of alignment
