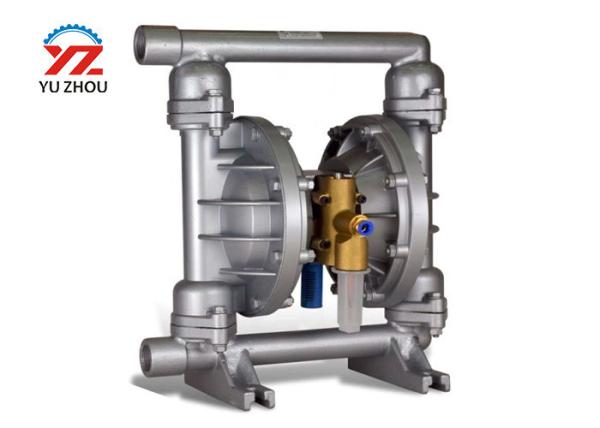

    Anti Strong Acid Alkali Air Operated Diaphragm Pump QBY Series Safety Reliable

    Ask Lasest Price
    Brand Name : Yuzhou
    Model Number : QBY
    Certification : ISO/SGS/CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 500 sets per month
    Delivery Time : 2-5 working days
    • Product Details
    • Company Profile

    Anti Strong Acid Alkali Air Operated Diaphragm Pump QBY Series Safety Reliable

    QBY series anti strong acid alkali chemical pneumatic pump air operated diaphragm pump ​


    Brief introduction

    1. QBY anti strong acid alkali chemical pneumatic pump air driven liquid pump is not only capable of exhausting the flow liquid , but also can convey some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.


    Advantages:

    1. No electricity. It's safe and reliable while in the flammable and explore places.

    2. Pump has no rotary parts and bearing seals. The diaphragm will completely separate the exhausted medium and pump running parts, working medium. There’s no leakage, thus it doesn’t cause environmental pollution and human body safety dangerous while exhausting the toxin and flammable or corrosive medium.

    3. It's convenient to use and reliable to work. This pump is simple in structure and easy to be installed and maintained.The medium conveyed doesn’t touch the matched pneumatic valve and coupling lever etc. While normal pumps’ performance will be decreased gradually because of the damages of driving parts.

    4. This pump doesn’t need oil lubricant, even works in dry run.


    Product application:

    1. The pump transports various toxin, flammable, volatility strong acid, alkali and corrosive liquid etc.

    2. The pump may suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops, syrup, paint, pigment, glue, adhesive, glazed slurries of tile, porcelain, brick, chinaware, grinding materials, corrosive agent, clean the oil dirt, wedge water, cement slurry and mortar etc.

    3. It can be used as a front-step transmission device of the solid and liquid separation equipment.


    Product details


    Working Principle:Double Diaphragms, pneumatic
    Main applications:Oil, Water, Chemical, Foodstuff,etc.
    Driver:Air operated
    Max.permissible fluid temperature:100°C(212°F)
    Type of connection:Flange, Thread, Quick Coupled.
    Installation position:Connect to compressor
    Pump body mateiral:CI, SS, AL, PP, PVDF, PTFE lined.
    Diaphragm, ball, ball seat mateiral:F46, PTFE, NBR, Santoprene, EPDM, etc
    Maximum drive rating:7kgf/cm2
    Maximum caliber:100mm(4inch)
    Maximum grain diameter:10mm(4inch)
    Maximum dischrage-side pressure:6kgf/cm2
    Maximum head:50m(164ft)
    Flow rate range:0.8-30m3/h(3.5-132US.GPM)

    Technical parameters:

    ModelDia(mm)Flow
    (m3/h)
    Head
    (m)
    Suction
    (m)

    Max Particle Size

    φ(mm)

    Air Pressure

    (kgf/cm2)

    QBY-10100.850512-7
    QBY-1515150512-7
    QBY-25252.45072.52-7
    QBY-404085074.52-7
    QBY-50501250782-7
    QBY-65651650782-7
    QBY-808024507102-7
    QBY-10010030507102-7
