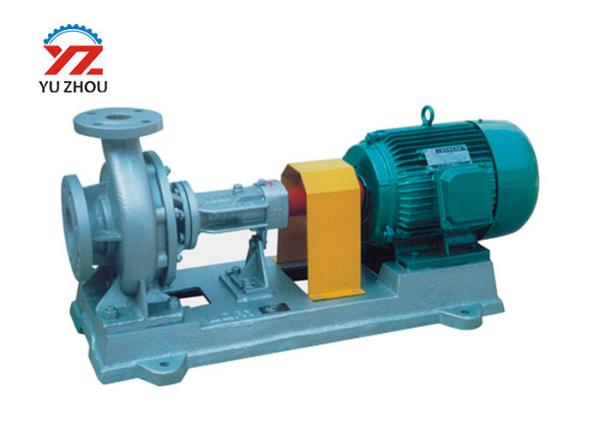

Electric Boiler Feed Water Pump , High Temperature Thermal Oil Pump RY Series

Ry Series High Temperature Electric Boiler Feed Water Hot Oil Thermal Transfer Pump

Introduction

RY series hot oil pump is a kind of ideal hot oil circulation pump. It’s mainly used to conveying high-temperature liquid which is weak corrosive and not include solid particles.The temperature is ≤350℃.It’s widely used in hot heating system in various fields,such as petroleum oil,chemical industry, rubber,plastic,medicine production industry, textile printing and dyeing industry, road building industry,food industry, timber processing industry, and other various industrial fields.

Produc

Application

Capacity: 1-500m3/h

Head: 10-125m

Temperature: -20°C~350°C

Theory: Centrifugal Pump

Application: Petrol-chemical,oil industry,plastic and rubber industry etc

Retro-chemical industry

Oil industry

Synthetic-fibre industry

Textile dyeing and printing industry

Plastic and rubber industry

Paper making industry

Timber processing industry

Construction and building industry

Besides the above fields, the pumps are also proper in machinery manufacturing, food processing, medicine making and the circling system for oil supplying of the hot oil boiler, the circling system of the heating installation.

Structure Introduction

The singl The support of the RY series composes foot support and central support, the inlet of the pump is axial direction suction and outlet is center vertical direction. The pump and motor have been installed on the same foundation through coupling, so the whole set do not need cooling system. Pump inlet and outlet flange and pressure parts are produced according to 16bar pressure, the base size in accordance with GB5660.

The main parts of the pump as follows:

Casing Part: body pump, pump cover .
Rotor Part: impeller, shaft, impeller nut .
Bearing part: bearing body with two sets of bearings, is the rotor supporter.
Sealing part: packing seal and high temperature resistant oil seal
Drive part: pump connects motor with three-jaw-type coupling, motor can be ordinary or explosion-proof,from the coupling side ,the pump rotate clockwise.
About new structure design ,We use a way of natural heat dissipation instead of the traditional way of water-cooled , reducing the size of the pump, so that the structure is simple, saving operating costs, good performance, safe and reliable.

Technical details:

Model	Flow ( m³/h)	Lift (m)	Speed (r/min)	Shaft Power(kw)	Power (kW)	Efficiency (%)
20-20-100	1	10	2800	0.09	0.75	26
20-20-125	1.5	22	2800	0.22	0.75	30
25-25-160	3	27	2900	0.53	1.5	30
32-32-160	6	28	2900	0.85	1.5	50
40-25-160	10	28	2900	1.72	2.2	45
40-25-200	10	50	2900	3.30	4.0	50
50-32-160	12.5	30	2900	1.90	3.0	57
20-20-100	1	10	2800	0.09	0.75	26
20-20-125	1.5	22	2800	0.22	0.75	30
25-25-160	3	27	2900	0.53	1.5	30
32-32-160	6	28	2900	0.85	1.5	50
40-25-160	10	28	2900	1.72	2.2	45
40-25-200	10	50	2900	3.30	4.0	50
50-32-160	12.5	30	2900	1.90	3.0	57
50-32-200	12.5	50	2900	3.78	5.5	45
50-32-200	18	40	2900	3.95	5.5	50
50-32-200A	16	32	2900	3.35	4.0	42
50-32-250	12.5	80	2900	6.20	11	44
50-32-250	18	70	2900	7.6	11	45
50-32-250A	16	60	2900	6.20	7.5	42
65-50-160	20	32	2900	3.17	5.5	55
65-40-200	25	50	2900	5.87	7.5	58
65-40-200	30	48	2900	6.30	7.5	62
65-40-200A	25	35	2900	4.00	5.5	59
65-40-250	25	80	2900	10.3	15	53
65-40-250A	20	51	2900	5.67	7.5	49
65-40-315	25	125	2900	18.9	30	45
65-40-315A	22.5	100	2900	15.3	22	40
80-50-200	40	52	2900	8.85	15	64
80-50-200	50	50	2900	9.70	15	70
80-50-200	60	46	2900	11.0	15	70
80-50-200A	45	40	2900	7.80	11	63
80-50-200B	40	32	2900	6.37	7.5	55
80-50-250	50	80	2900	18.7	22	58
80-50-250	60	72	2900	19.6	22	60
80-50-250A	43	60	2900	12.80	15	55
80-50-315	50	125	2900	30.4	45	56
80-50-315A	45	100	2900	23.6	30	52
100-65-200	80	53	2900	16.50	22	70
100-65-200	100	50	2900	18.40	22	74
100-65-200A	94	44	2900	16.00	22	70
100-65-200B	87	38	2900	13.80	15	65
100-65-200C	80	32	2900	11.80	15	59
100-65-250	80	85	2900	28.90	37	64
100-65-250	100	80	2900	32.06	37	68
100-65-250A	95	72	2900	29.00	37	64
100-65-250B	90	65	2900	26.20	30	61
100-65-315	80	130	2900	45.00	75	63
100-65-315	100	125	2900	50.06	75	68
100-65-315A	95	113	2900	45.23	55	64
100-65-315B	90	100	2900	40.50	55	60
100-65-315C	82	84	2900	34.76	45	54
125-80-160	160	50	2900	28.70	22	76
125-80-200	160	50	2900	28.7	37	76
125-80-200	180	45	2900	29.4	37	75
125-80-250	160	80	2900	47.75	55	73
125-80-250A	140	70	2900	39.20	45	69
125-100-200	180	52	2900	34	45	75
125-100-200	200	50	2900	35.4	45	77
125-100-200A	178	40	2900	26.60	37	73
125-100-250	200	70	2900	47.00	55	80
125-100-250	230	62	2900	51.80	55	75
125-100-250A	190	63	2900	44.00	55	74
125-100-250B	180	57	2900	40.00	45	70
125-100-250C	170	51	2900	34.72	45	68
125-100-250D	150	70	2900	40.00	45	70
125-100-315	200	125	2970	95.80	110	72
125-100-315	230	115	2970	103	110	70
125-100-315A	180	100	2970	70.10	90	70
150-150-200	250	56	2970	50.10	75	77
150-150-200	300	50	2970	52.00	75	79
150-150-250	300	80	2970	83.79	110	78
150-150-250A	260	80	2970	2970	75.50	90
150-150-250B	270	65	2970	66.50	75	72
200-150-400	350	50	1480	61.10	75	78
200-150-400A	330	45	1480	52.80	75	77
200-200-500	400	80	1480	117.7	132	74
250-200-400	500	50	1480	86.20	110	79
250-200-500	500	80	1480	143.5	160	76
250-200-500A	400	50	1480	75	90	73
300-300-500	800	80	1480	229	280	76
