Explosionproof Type Hot Oil Transfer Pump With Stable Pressure Long Service Life

Ask Lasest Price
Brand Name :	Yuzhou
Model Number :	RY
Certification :	ISO/SGS/CE
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	500 sets/month
Delivery Time :	3-7 working days

Add to Cart

Product Details
Company Profile

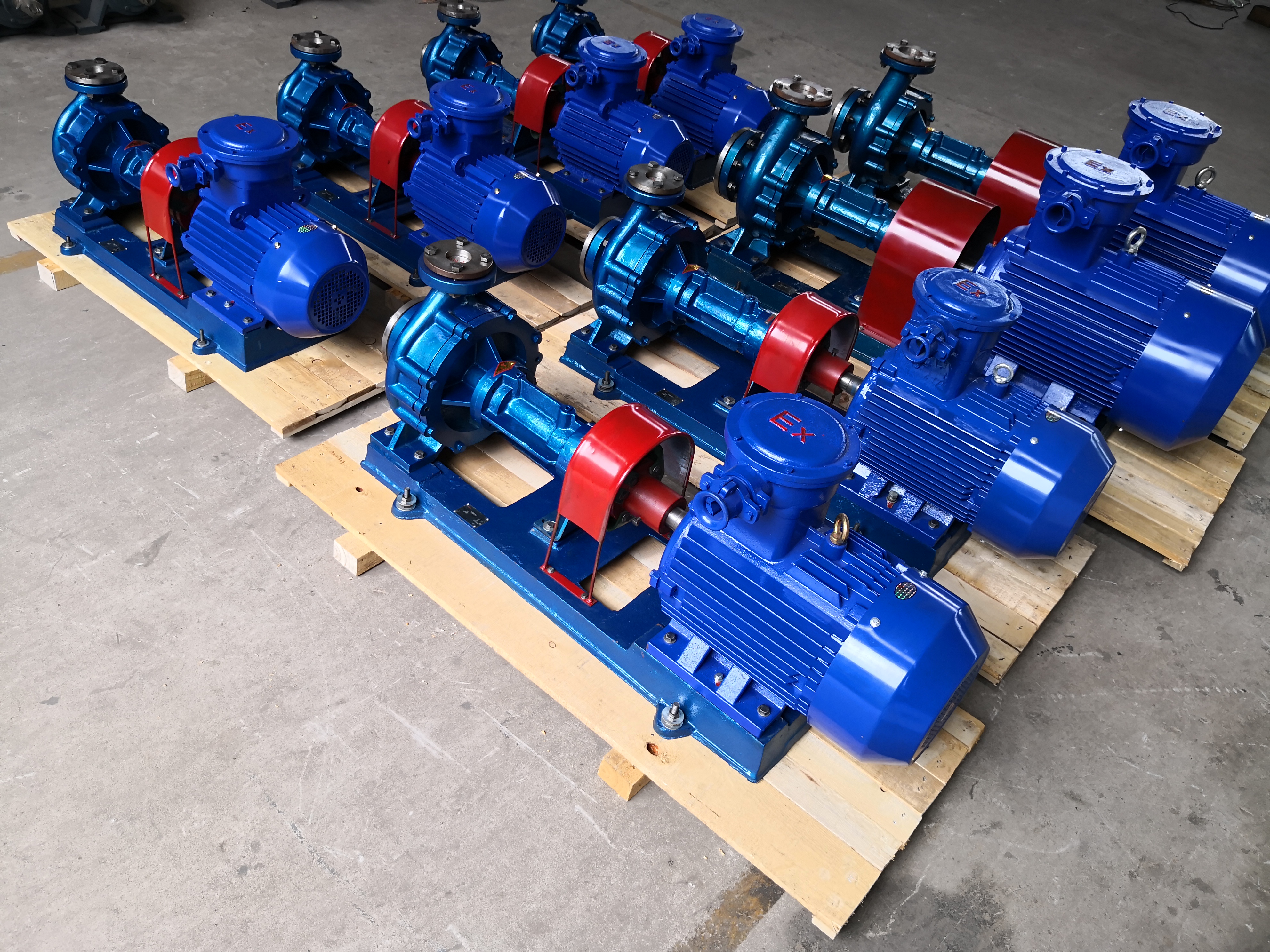

Explosionproof Type Hot Oil Transfer Pump With Stable Pressure Long Service Life

Air Cooled Thermal Oil Pump Long Service Life Electric Centrifugal Hot Oil Pump

RY seri

RY series air-cooled high-temperature heat-conducting oil pump is mainly used to transport weakly corrosive high-temperature liquid without solid particles. It is an ideal circulating pump with temperature ≤350°C.

The basic structure of the RY type heat transfer oil pump is a single-stage single-suction cantilever type foot support structure. The inlet of the pump is axially sucked, the outlet is centered vertically upward, and the motor is mounted on the base.
The support of the RY type heat transfer oil pump adopts the structure supported by the double-end ball bearing. The front end is lubricated with lubricating oil, the rear end is lubricated with grease, and the middle part has a guide oil tube for observing the sealing condition and recovering the heat transfer oil at any time. The self-heating heat dissipation structure changes the traditional water cooling structure, so that the structure is simple, the volume is small, the operation cost is saved, the performance is good, and the use is reliable.
RY type heat transfer oil pump, (1) combined with packing seal and mechanical seal, high temperature resistant packing for packing seal, good thermal adaptability, and mechanical seal with high mechanical strength and good wear resistance The alloy material ensures the sealing performance under high temperature conditions. (2) The third-generation PTFE (abbreviated as PTFE) is used as the lip seal to improve the sealing and corrosion resistance.

RY series air-cooled high temperature heat transfer oil pump performance range (by design point)

Flow rate 1-500m3/h;
the head is 10-125m;
Temperature -20. C-350 ° C;

Technical details:

Model	Flow ( m³/h)	Lift (m)	Speed (r/min)	Shaft Power(kw)	Power (kW)	Efficiency (%)
20-20-100	1	10	2800	0.09	0.75	26
20-20-125	1.5	22	2800	0.22	0.75	30
25-25-160	3	27	2900	0.53	1.5	30
32-32-160	6	28	2900	0.85	1.5	50
40-25-160	10	28	2900	1.72	2.2	45
40-25-200	10	50	2900	3.30	4.0	50
50-32-160	12.5	30	2900	1.90	3.0	57
20-20-100	1	10	2800	0.09	0.75	26
20-20-125	1.5	22	2800	0.22	0.75	30
25-25-160	3	27	2900	0.53	1.5	30
32-32-160	6	28	2900	0.85	1.5	50
40-25-160	10	28	2900	1.72	2.2	45
40-25-200	10	50	2900	3.30	4.0	50
50-32-160	12.5	30	2900	1.90	3.0	57
50-32-200	12.5	50	2900	3.78	5.5	45
50-32-200	18	40	2900	3.95	5.5	50
50-32-200A	16	32	2900	3.35	4.0	42
50-32-250	12.5	80	2900	6.20	11	44
50-32-250	18	70	2900	7.6	11	45
50-32-250A	16	60	2900	6.20	7.5	42
65-50-160	20	32	2900	3.17	5.5	55
65-40-200	25	50	2900	5.87	7.5	58
65-40-200	30	48	2900	6.30	7.5	62
65-40-200A	25	35	2900	4.00	5.5	59
65-40-250	25	80	2900	10.3	15	53
65-40-250A	20	51	2900	5.67	7.5	49
65-40-315	25	125	2900	18.9	30	45
65-40-315A	22.5	100	2900	15.3	22	40
80-50-200	40	52	2900	8.85	15	64
80-50-200	50	50	2900	9.70	15	70
80-50-200	60	46	2900	11.0	15	70
80-50-200A	45	40	2900	7.80	11	63
80-50-200B	40	32	2900	6.37	7.5	55
80-50-250	50	80	2900	18.7	22	58
80-50-250	60	72	2900	19.6	22	60
80-50-250A	43	60	2900	12.80	15	55
80-50-315	50	125	2900	30.4	45	56
80-50-315A	45	100	2900	23.6	30	52
100-65-200	80	53	2900	16.50	22	70
100-65-200	100	50	2900	18.40	22	74
100-65-200A	94	44	2900	16.00	22	70
100-65-200B	87	38	2900	13.80	15	65
100-65-200C	80	32	2900	11.80	15	59
100-65-250	80	85	2900	28.90	37	64
100-65-250	100	80	2900	32.06	37	68
100-65-250A	95	72	2900	29.00	37	64
100-65-250B	90	65	2900	26.20	30	61
100-65-315	80	130	2900	45.00	75	63
100-65-315	100	125	2900	50.06	75	68
100-65-315A	95	113	2900	45.23	55	64
100-65-315B	90	100	2900	40.50	55	60
100-65-315C	82	84	2900	34.76	45	54
125-80-160	160	50	2900	28.70	22	76
125-80-200	160	50	2900	28.7	37	76
125-80-200	180	45	2900	29.4	37	75
125-80-250	160	80	2900	47.75	55	73
125-80-250A	140	70	2900	39.20	45	69
125-100-200	180	52	2900	34	45	75
125-100-200	200	50	2900	35.4	45	77
125-100-200A	178	40	2900	26.60	37	73
125-100-250	200	70	2900	47.00	55	80
125-100-250	230	62	2900	51.80	55	75
125-100-250A	190	63	2900	44.00	55	74
125-100-250B	180	57	2900	40.00	45	70
125-100-250C	170	51	2900	34.72	45	68
125-100-250D	150	70	2900	40.00	45	70
125-100-315	200	125	2970	95.80	110	72
125-100-315	230	115	2970	103	110	70
125-100-315A	180	100	2970	70.10	90	70
150-150-200	250	56	2970	50.10	75	77
150-150-200	300	50	2970	52.00	75	79
150-150-250	300	80	2970	83.79	110	78
150-150-250A	260	80	2970	2970	75.50	90
150-150-250B	270	65	2970	66.50	75	72
200-150-400	350	50	1480	61.10	75	78
200-150-400A	330	45	1480	52.80	75	77
200-200-500	400	80	1480	117.7	132	74
250-200-400	500	50	1480	86.20	110	79
250-200-500	500	80	1480	143.5	160	76
250-200-500A	400	50	1480	75	90	73
300-300-500	800	80	1480	229	280	76
