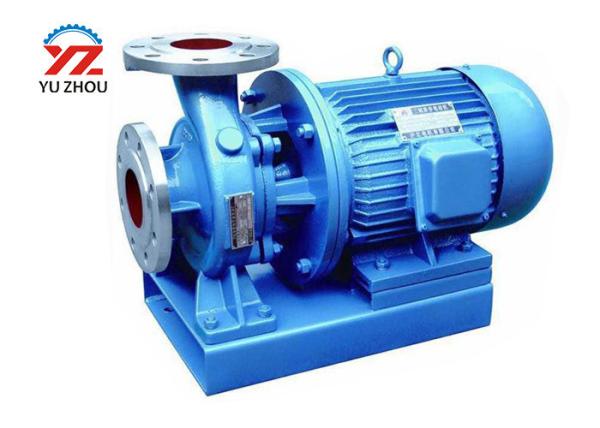

ISW series stainless steel Inline Circulating Centrifugal Water
Pump
Application:
1, ISW inline centrifugal pump is used for conveying clean water
and other liquids which physical and chemical properties is similar
to clean water. It is suitable for water supply and drainage of
Factory and city, high-rise building’s water supply, garden
irrigation, fire boosting pump. Temperature ≤ 80 ° C
2, ISWB is for transporting oil or Flammable, explosive liquids
such as petrol, diesel, kerosene and other petroleum products.
Temperature : -20 ° C -120 ° C
3, ISWR is widely used as hot water circulation pump for boiler and
urban heating system. Temperature ≤ 120 ° C
4, ISWH chemical pump is for transporting liquids, without solid
particles, which corrosive and viscosity is similar to water. Pump
is most used in petroleum production, chemical factory, power
station, paper making, food, pharmaceutical area .Temperature : -20
° C - 120 ° C.
Advantages:
1. ISW ISG electric drum pumps is a high-effective energy-saving
pump.
2. Stable running, low noise, high concentricity of components.
Bearings of low noise are used for the motor, the impellers are of
best dynamic and static balance, no vibration at running and the
environment thus being improved.
3. No leakage. The shaft is mechanically sealed with carbide alloy
wearable material, settling the serious leakage of the filling seal
of a centrifugal pump and extending the duration and ensuring the
operation place clean and tidy.
4. Widely used in industrial and cities’ water supply and drainage,
high buildings’ booster water supply, garden's irrigation,
fire-fighting booster, remote water supply, warming systems,
circular booster of cold&hot water in bath rooms as well as in
competitions of equipments.
5. The pump, according to the operation condition of the workshop,
is vertical or horizontal, and also according to the requirements
for the flow and stroke, mounted in parallel and/or in series to
increase the needed flow and stroke.
6. The flow range is 1.1-2400m3/h and the stroke range is 8-160m
and there are basic types, by-pass type, A B C cutting type etc.
And per the different flow medium and temperature, IRG/IRGB/ISWR
hot water pump, IHG/IHGB/ISWH series chemical pumps and YG/YGB/ISWB
oil pumps.
Technical data
| Model | Capacity (m3/h) | Lift head (m) | Speed (r/min) | Motor (KW) | Inlet&Outlet Diameter (mm) |
| 65-250 | 17.5 25 32.5 | 82 80 76.5 | 2900 | 15 | 65 |
| 65-250A | 16.4 23.4 30.4 | 71.5 70 67 | 2900 | 11 | 65 |
| 65-250B | 15 21.6 28 | 61 60 57.4 | 2900 | 7.5 | 65 |
| 65-315 | 17.5 25 32.5
| 127 125 122 | 2900 | 30 | 65 |
| 65-315A | 16.6 23.7 31 | 115 113 110 | 2900 | 22 | 65 |
| 65-315B | 15.7 22.5 29.2 | 103 101 98 | 2900 | 18.5 | 65 |
| 65-315C | 14.4 20.6 26.8 | 86 85 83 | 2900 | 15 | 65 |
| 65-100(I) | 35 50 65 | 13.8 12.5 10 | 2900 | 3 | 65 |
| 65-100(I)A | 31.3 44.7 58 | 11 10 8 | 2900 | 2.2 | 65 |
| 65-125(I) | 35 50 65 | 22 20 17 | 2900 | 5.5 | 65 |
| 65-125(I)A | 31.3 45 58 | 17.5 16 13.6 | 2900 | 4 | 65 |
| 65-160(I) | 35 50 65 | 35 32 28 | 2900 | 7.5 | 65 |
| 65-160(I)A | 32.7 46.7 61 | 30.6 28 24 | 2900 | 5.5 | 65 |
| 65-160(I)B | 30.3 43.3 56.3 | 26 24 21 | 2900 | 4 | 65 |
| 65-200(I) | 35 50 65 | 53.5 50 46 | 2900 | 15 | 65 |
| 65-200(I)A | 32.8 47 61 | 47 44 40 | 2900 | 11 | 65 |
| 65-200(I)B | 30.5 43.5 56.6 | 40.6 38 33.4 | 2900 | 7.5 | 65 |
| 65-250(I) | 35 50 65 | 83 80 72 | 2900 | 22 | 65 |
| 65-250(I)A | 32.5 46.7 61 | 73 70 63 | 2900 | 18.5 | 65 |
| 65-250(I)B | 30 43.3 56 | 62 60 54 | 2900 | 15 | 65 |
| 65-315(I) | 35 50 65 | 128 125 121 | 2900 | 37 | 65 |
| 65-315(I)A | 32.5 46.5 60.5 | 112.6 110 106.4 | 2900 | 30 | 65 |
| 65-315(I)B | 31 44.5 58 | 102.5 100 98 | 2900 | 30 | 65 |
| 65-315(I)C | 29 41 53.6 | 87 85 83 | 2900 | 22 | 65 |
| 80-100 | 35 50 65 | 13.8 12.5 10 | 2900 | 3 | 80 |
| 80-100A | 31.3 44.7 58 | 11 10 8 | 2900 | 2.2 | 80 |
| 80-125 | 35 50 65 | 22 20 17 | 2900 | 5.5 | 80 |
| 80-125A | 31.3 45 58 | 17.5 16 13.6 | 2900 | 4 | 80 |
| 80-160 | 35 50 65 | 35 32 28 | 2900 | 7.5 | 80 |
| 80-160A | 32.7 46.7 61 | 30.6 28 24 | 2900 | 5.5 | 80 |
| 80-160B | 30.3 43.3 56.3 | 26 24 21 | 2900 | 4 | 80 |
| 80-200 | 35 50 65 | 53.5 5. 46 | 2900 | 15 | 80 |
| 80-200A | 32.8 47 61 | 47 44 40 | 2900 | 11 | 80 |
| 80-200B | 30.5 43.5 56.6 | 40.6 38 33.4 | 2900 | 7.5 | 80 |
| 80-250 | 35 50 65 | 83 80 72 | 2900 | 22 | 80 |
| 80-250A | 32.5 46.7 61 | 73 70 63 | 2900 | 18.5 | 80 |
| 80-250B | 30 43.3 56 | 62 60 54 | 2900 | 15 | 80 |
| 80-315 | 35 50 65 | 128 125 122 | 2900 | 37 | 80 |
| 80-315A | 32.5 46.5 60.5 | 112.6 110 107.4 | 2900 | 30 | 80 |
| 80-315B | 31 44.5 58 | 102.5 100 98 | 2900 | 30 | 80 |
| 80-315C | 29 41 53.6 | 98 85 83 | 2900 | 22 | 80 |
| 80-350 | 35 50 65 | 146 150 142 | 2900 | 55 | 80 |
