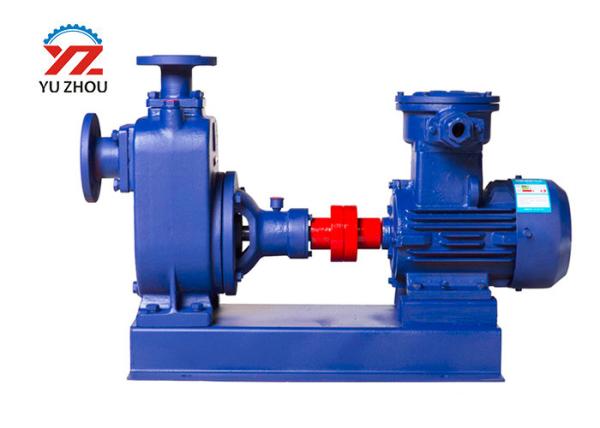

Stainless Steel Self Priming Suction Pump Corrosion Resistance Explosion Proof

Ask Lasest Price
Brand Name :	Yuzhou
Model Number :	ZX
Certification :	ISO/SGS/CE
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	500 sets/month
Delivery Time :	3-7 working days

Add to Cart

Product Details
Company Profile

Stainless Steel Self Priming Suction Pump Corrosion Resistance Explosion Proof

ZX series Self-priming Water Transfer Pump Explosion proof stainless steel corrosion resistance self suction pump

Product introduction:

1. ZX heavy duty centrifugal self priming irrigation pump diesel engine driven water pump works for water or medium similar to water that viscosity below 5°E and temperature below 80°C(176°F).

2. It is compact, easy to operate, running stable, easy to maintain, efficient, with long service life and large suction capacity.

3. The water pump with self priming ability could work without bottom valve in channel but with the quantitative lead liquid that kept in pump before operation.

4. Pump may equipped with diesel engine for outdoor and wild water supply and drainage.

Application

Cooling, fire,ballast,bilge,

Sea water supply and transfer

Liquid of sanitation transfer,

Range of performance

Inlet range 25~300mm

Outlet range 20~250mm

Capacity 3.2~550 m3/h

Head 10~80m

Self-priming height 5~6.5m

Motor 0.75~132KW

Bearning NSK/SKF

Medium temperature: -2 ~ 80 DC

Viscocity: under100 cps

Product details:

Working Principle:	Centrifugal, Self-priming
Main applications:	Sewage Water
Driver:	Electric motor, Diesel engine
Power Specs:	110/220/230V 1phase; 220/380/400/415V 3phase; 50hz/60hz
Max.permissible fluid temperature:	80°C(176°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing parts material:	Cast iron, Stainless Steel
Shaft seal type:	Mechanical seal
Free passage:	0mm
Maximum drive rating:	132KW(180HP)
Maximum caliber:	300mm(12inch)
Maximum head:	80m(262.4ft)
Maximum suction:	6.5m(21.3ft)
Flow rate range:	3.2-600m3/h(14.1-2640US.GPM)

Technology Parameters:

No	Type	Caliber (mm)	Flow (m3/h)	Head (m)	Power (kw)	Speed (r/min)	Self-Priming height (m)
1	25ZX3.2-20	25	3.2	20	1.1	2900	6.5
2	25ZX3.2-32	25	3.2	32	1.5	2900	6.5
3	32ZX3.2-20	32	3.2	20	1.1	2900	6.5
4	32ZX3.2-32	32	3.2	32	1.5	2900	6.5
5	32ZX3.2-50	32	3.2	50	3	2900	6.5
6	40ZX6.3-20	40	6.3	20	1.5	2900	6.5
7	40ZX6.3-32	40	6.3	32	2.2	2900	6.5
8	40ZX10-40	40	10	40	4	2900	6.5
9	40ZX6.3-50	40	6.3	50	4	2900	6.5
10	50ZX15-12	50	15	12	1.5	2900	6.5
11	50ZX18-20	50	18	20	2.2	2900	6.5
12	50ZX12.5-32	50	12.5	32	3	2900	6.5
13	50ZX12.5-40	50	12.5	40	4	2900	6.5
14	50ZX12.5-50	50	12.5	50	5.5	2900	6.5
15	50ZX20-30	50	20	30	4	2900	6.5
16	50ZX14-35	50	14	35	4	2900	6.5
17	50ZX10-40	50	10	40	4	2900	6.5
18	50ZX15-60	50	15	60	7.5	2900	6.5
19	50ZX20-75	50	20	75	11	2900	6.5
20	65ZX30-15	65	30	15	3	2900	6.5
21	65ZX25-32	65	25	32	5.5	2900	6
22	65ZX25-50	65	25	50	7.5	2900	6
23	65ZX25-70	65	25	70	15	2900	6
24	80ZX35-13	80	35	13	3	2900	6
25	80ZX43-17	80	43	17	4	2900	6
26	80ZX40-22	80	40	22	5.5	2900	6

No.	Type	Caliber (mm)	Flow (m3/h)	Head (m)	Power (kw)	Speed (r/min)	Self-Priming height (m)
27	80ZX50-20	80	50	20	5.5	2900	6
28	80ZX50-25	80	50	25	7.5	2900	6
29	80ZX50-32	80	50	32	7.5	2900	6
30	80ZX50-40	80	50	40	11	2900	6
31	80ZX60-55	80	60	55	18.5	2900	6
32	80ZX60-70	80	60	70	22	2900	6
33	100ZX80-20	100	80	20	11	2900	6
34	100ZX100-20	100	100	20	11	2900	6
35	100ZX100-32	100	100	32	15	2900	6
36	100ZX100-40	100	100	40	18.5	2900	6
37	100ZX100-50	100	100	50	22	2900	6
38	100ZX100-65	100	100	65	30	2900	6
39	100ZX70-75	100	70	75	30	2900	6
40	150ZX180-28	150	180	28	30	2900	6
41	150ZX170-55	150	170	55	45	2900	5
42	150ZX170-65	150	170	65	55	2900	5
43	150ZX160-80	150	160	80	55	2900	5
44	200ZX400-32	200	400	32	55	1450	5
45	200ZX280-63	200	280	63	90	1450	5
46	200ZX350-65	200	350	65	110	1450	5
47	250ZX550-32	250	550	32	75	1450	5
48	250ZX400-50	250	400	50	90	1450	5
49	250ZX450-55	250	450	55	110	1450	5
50	300ZX600-32	300	600	32	90	1450	5
51	300ZX500-50	300	500	50	110	1450	5
52	300ZX550-55	300	550	55	132	1450	5
