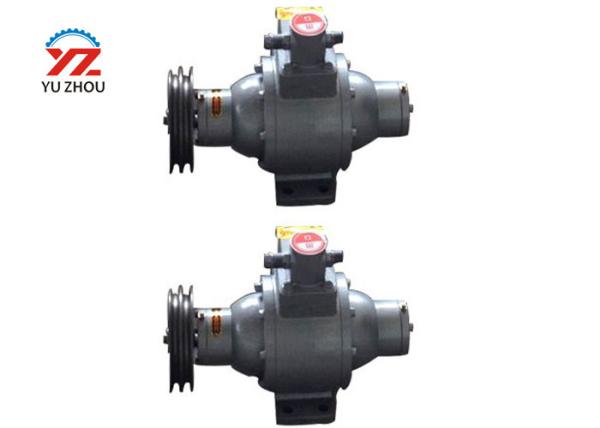

YQB series LPG transfer pump bare pump 2 inch 3 inch cast iron material

Descreption:

YQB series Lpg transfer pump is based on the micro liquefied petroleum gas pump and improved according to customer needs. The inlet of the pump can be retrofitted with multiple interfaces to increase canning efficiency. This pump uses a DC motor to drive, and can be used directly with a 48v battery, which solves the problem of inconvenient power consumption for customers.
For example, if two cylinders are poured into one cylinder, the 15 kg is about 60 seconds - 120 seconds.

Advantages:

1.Equipped with Anti-Explosion Motor to obtain high safety performance;

2.Belt type transmission is convenient for Maintenance and Repair;

3.Inner rotary movement parts use metal to match nonmetal to avoid generating static electricity;

4.The vane can be pushed out from the slot of rotatory.The adjustment is automatically and continuous according to the wear condition, so the efficiency and transmission capacity is closer to its initial state throughout the life span of vane;

5.Can make fine tuning of the motor to reduce vibration and stabilize running;

6.The pump with absorbed-tube for inlet and outlet;

7.Equipped with one set quick-wear parts for easy replacement;

8.Pedestal is fixed on bottom of wooden case during transportation to avoid abrasion and ensure safety delivery.

Technical details:

How to use:

1. Connect the gas cylinder with the pump at the pump inlet and open the cylinder angle valve.

Inverted cylinder, (preferably the cylinder outlet is higher than the inverted pump) see the pressure gauge

There is no pressure. The normal pressure is about 2 kg.

2. Open the gun switch at the pump outlet, and need to drain the pump when using for the first time.

Inside the air, then turn on the empty cylinder and turn on all switches.

3. Test the car, turn the wheel by hand, check if there is any debris in the pump, and jog the power switch to test the pump to reverse direction. (there is a steering indicator on the pump)

4.Stop, the empty cans cut off the power supply and stop running, close the valves.
