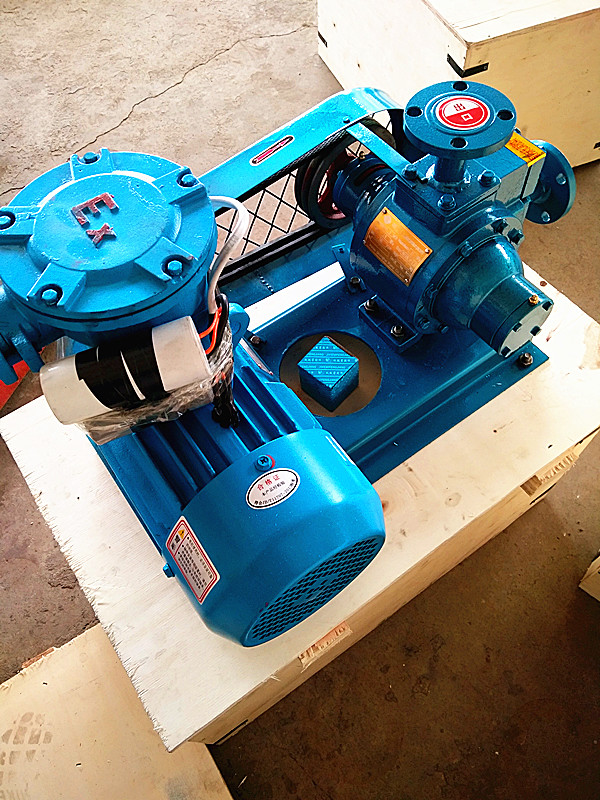

YQB series Explosion Motor 220v/380v Single Phrase Belt type transmission LPG Transfer Pump for Nigeria Market

Descreption:

YQB series LPG Transfer Pump with Explosion Motor 220v Single Phrase for Nigeria Market is based on the micro liquefied petroleum gas pump and improved according to customer needs. The inlet of the pump can be retrofitted with multiple interfaces to increase canning efficiency. This pump uses a DC motor to drive, and can be used directly with a 48v battery, which solves the problem of inconvenient power consumption for customers.
For example, if two cylinders are poured into one cylinder, the 15 kg is about 60 seconds - 120 seconds.
Model: YQB3-5
Flow rate: Q=10L-20L/min
Pressure difference: P△=0.3-0.5MPa
Working pressure: P=1.6MPa
Speed: h=900r/min
Motor power: N=800W
Voltage: V=48V/220/380

YQB series LPG Transfer Pump with Explosion Motor 220v Single Phrase for Nigeria Market mainly used for liquefied petroleum gas cylinders, and other similar chemical products with similar properties.

YQB series LPG Transfer Pump with Explosion Motor 220v Single Phrase for Nigeria Market​, for high differential pressure application using, for underground and aboveground tank application. Liquefied gas Pump.
It is commonly found in the LPG industry because its high pumping efficiencies, Long life, ease of maintenance. It's housing and rotors are constructed of ductile iron for high strength, the vanes are self-adjusting for wear.
It can handle small amounts of vapor formed at the pump suction. V-belt and direct-drive mounting available for choice

YQB series LPG Transfer Pump with Explosion Motor 220v Single Phrase for Nigeria Market Technical details:

YQB series LPG Transfer Pump with Explosion Motor 220v Single Phrase for Nigeria Market Advantages:
1.Equipped with Anti-Explosion Motor to obtain high safety performance;
2.Belt type transmission is convenient for Maintenance and Repair;
3.Inner rotary movement parts use metal to match nonmetal to avoid generating static electricity;
4.The vane can be pushed out from the slot of rotatory.The adjustment is automatically and continuous according to the wear condition, so the efficiency and transmission capacity is closer to its initial state throughout the life span of vane;
5.Can make fine tuning of the motor to reduce vibration and stabilize running;
6.The pump with absorbed-tube for inlet and outlet;
7.Equipped with one set quick-wear parts for easy replacement;
8.Pedestal is fixed on bottom of wooden case during transportation to avoid abrasion and ensure safety delivery.
