LPG multistage transfer pump LPG fuel dispenser side multistage
feeding channel pump

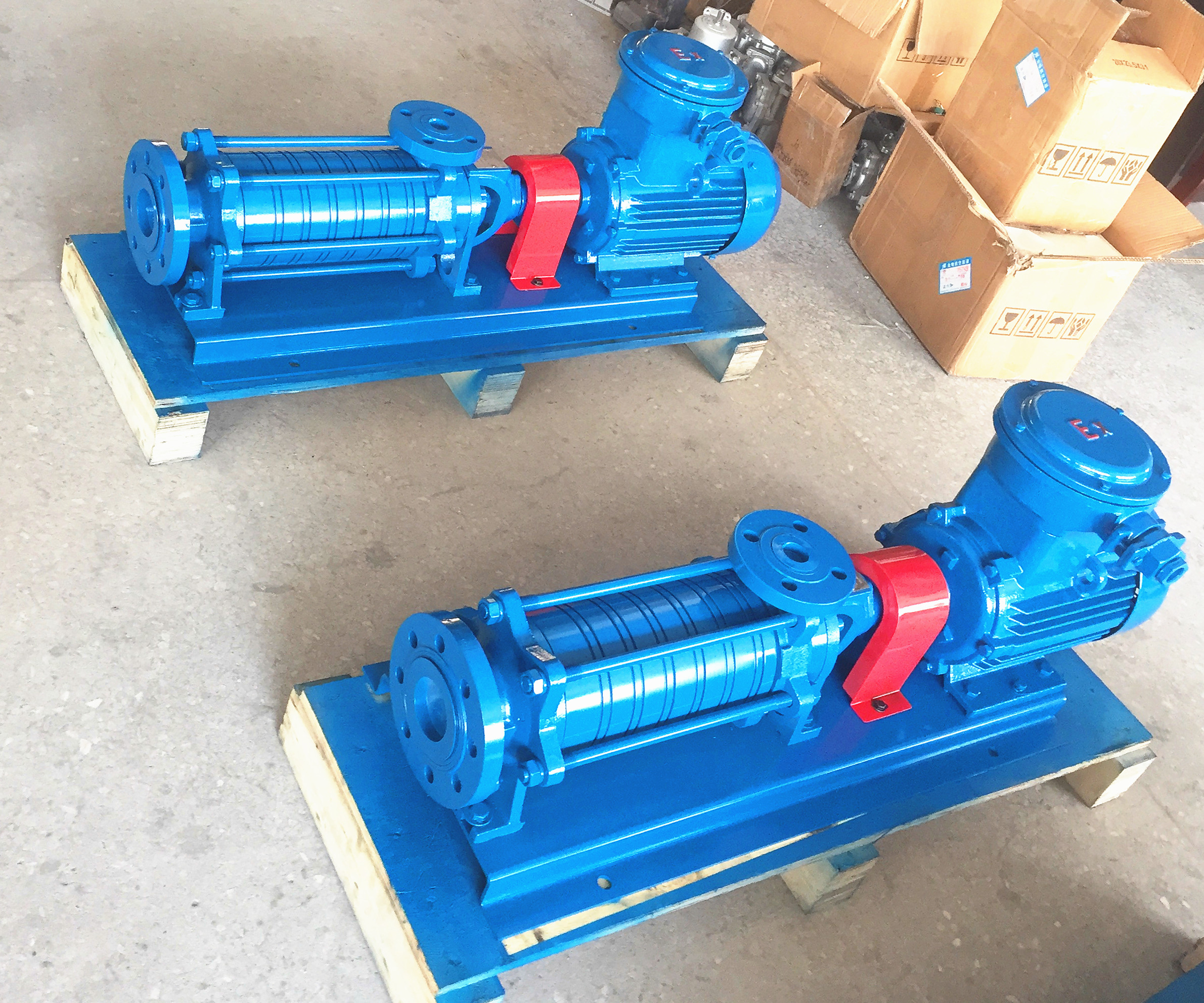

LPG series side channel multistage pump LPGP-65/LPGP-85
LPG Side Channel Multistage Pump is a centrifugal pump, which
adopts horizontal structure of 6 classes and 8 stages. And the
shaft adopts mechanical seal without cooling. The pump is used for
transferring LPG, especially it is high differential pressure, low
NPSH and the gas of LPG up to 50% when pumping LPG from underground
tank. The suction end of the pump adopts precompression turbine,
which makes it better in use under the requirement of low NPSH. So
this pump can work under the condition of bad suction.
Application : LPG tank filling / LPG transfer / bulk filling
operation / load and unload / vapor recuperation
Power : 380V / 220V
Technical Specification:
| Model | LPGP-65 | LPGP-85 |
| Direction of Rotation | Anti-clockwise facing the end of the pumpdrive shaft |
| Max working pressure | 2.5Mpa |
| Speed | 1450r/min |
| Power | 4kw 380v 50hz | 5.5380v 50hz |
| Ambient temperature | -30℃ to 60 ℃ |
| Stage | 6 stages | 8 Stages |
| Flow rate | 4.5m3/h | 5.5m3/h |
| Connecting flanges | Inlet 65mm ,Outlet:25mm |
| Bearings | Pump and sliding bearing,ball bearing drive end |
| Lubrication | Silding bearing lubrication by pump medium pump end, drive the ball
bearing lubrication. |
| MOQ | 1 Set |
