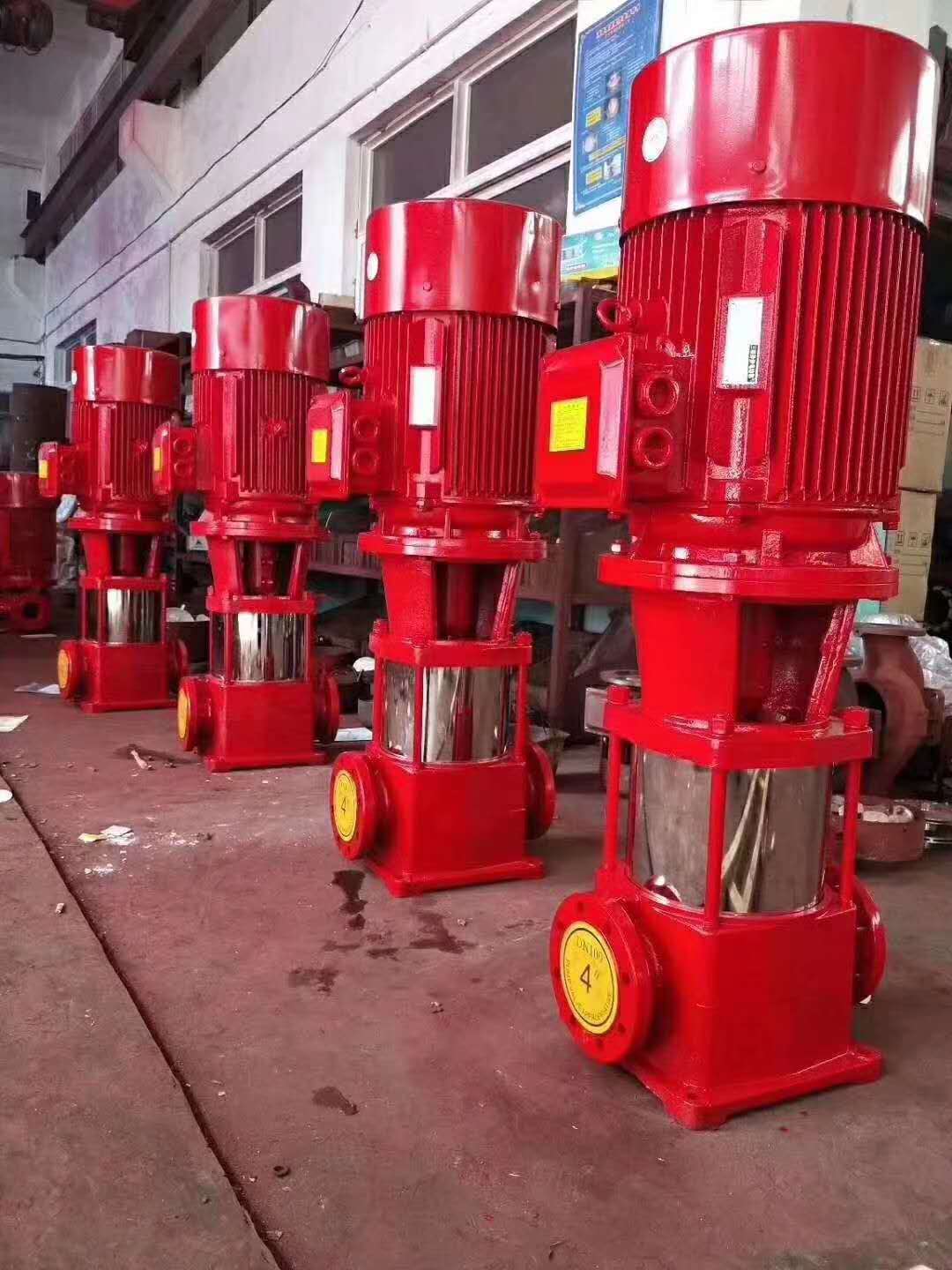

CDL/CDLF series vertical multistage centrifugal pump CCCF certified
vertical multistage fire jockey pump
Brief Introduction
Multistage Centrifugal Pump CDL/CDLF is a kind of multi function
product with wide application. It may transmit various mediums
including water or industrial liquid and is suitable for different
temperature, flow rate and range of pressure. Its typical
application mainly includes the following aspects,
CDL/CDLF is a kind of multifunctional products. It can be used to
convery various medium from tap water to industrial liquid at
different temperature and with different flow rate and pressure.
CDL type is applicable to conveying non-corrosive liquid, with CDLF
is suitable for slightly corrosive liquid.
1. Water supply: Water filter and transport in waterworks, boosting
of main pipeline, boosting in high-rise buildings.
2. Industrial boosting: Process flow water system, cleaning system,
high-pressure washing system, fire fighting system.
3. Industrial liquid conveying: Cooling and air-conditioning
system, boiler water supply and condensing system,
machine-associated purpose, acids and alkali.
4. Water treatment: Ultrafiltration system, reverse osmosis system,
distillation system, separator, swimming pool.
5. Irrigation: Farmland irrigation, spray irrigation, dripping
irrigation.
Features:
1. Compact structure, this series Multistage Centrifugal Pumps are
horizontal structure, motors and pumps assembled into one,
beautiful appearance, small area, compared with the normal
horizontal pump, the area reduce by 30%.
2. Multistage Centrifugal Pumps are balanced running, low noise,
high components concentricity.
3. No leakage Multistage Centrifugal Pumps.
4. Convenient maintenance Multistage Centrifugal Pumps.
5. From the inlet direction of this series Multistage Centrifugal
Pump, the outlet of the pump can be installed arbitrarily in
straight up way.
Working condition:
1. The maximum working pressure of Multistage Centrifugal Pump
system ≤1.6MPa, Multistage Centrifugal Pump inlet pressure + pump
lift ≤1.6MPa , so when ordering please indicate the system working
pressure. When the inlet pressure is greater than 0.4 MPa or the
system working pressure is greater than 1.6MPa, please put forward
when ordering , so that when manufacturing we can take appropriate
measures in the pump flow portion and connection portion;
2. Applicable medium: solid insoluble matter volume content of the
medium is no more than 0.1% of the unit volume, particle size is no
more than 0.2mm, if the medium has fine particles, please indicate
when ordering .
3. Ambient temperature doesn't exceed 40 centigrade, relative
humidity is no more than 95%;
4. Thin, clean, non-flammable and non-explosive liquid containing
no solid granules and fibers;
5. Liquid temperature: <70 °C;
6. Altitude: up to 800m.
Note:Special demands can be negotiated.
Structure:
1. The Multistage Centrifugal Pump for the vertical structure,
import and export of the same caliber, and in the same center line,
as the valve installed in the pipeline, compact appearance, small
footprint, low construction inputs, such as with the shield It can
be placed outdoors.
2. The impeller of Multistage Centrifugal Pump is mounted directly
on the motor shaft extension, the short axial dimension, compact
structure, reasonable configuration of pump and motor bearings, can
effectively balance the radial and axial loads generated by
operation of the pump, thus ensuring the smooth operation of the
pump, vibration and low noise.
3. Seal with mechanical seal or a combination of mechanical of the
Multistage Centrifugal Pump, using imported titanium alloy seal
ring, medium and high temperature mechanical seal with carbide
materials, wear-resistant seal, can effectively extend mechanical
seal life.
4. Easy installation and maintenance, no need to open pipe road
system, as long as remove the pump nut seat body out all the rotor
components.
5. Flow and head requirements that need using Multistage
Centrifugal Pumps in series and parallel operation according to the
requirements.
6. Can use the vertical and horizontal pipeline pumps installed
according to requirements of piping layout.
| Working Principle: | Centrifugal, Multistage |
| Main applications: | Water |
| Driver: | Electric motor |
| Power Specs: | 220V/380/415V 3phase; 220/240V 1phase; 50hz/60hz,etc |
| Max.permissible fluid temperature: | 80℃/120°C(hot water type) |
| Type of connection: | Flange connection |
| Installation position: | Vertical |
| Impeller/diffuser/inducer/shaft material: | Stainless steel 304 or 316 |
| Shaft seal type: | Mechanical seal |
| Maximum drive rating: | 110KW(150HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum dischrage-side pressure: | 2.55MPa(25.5bar) |
| Maximum head: | 255m(836.4ft) |
| Flow rate range: | 1-240m3/h(4.4-1056US.GPM) |

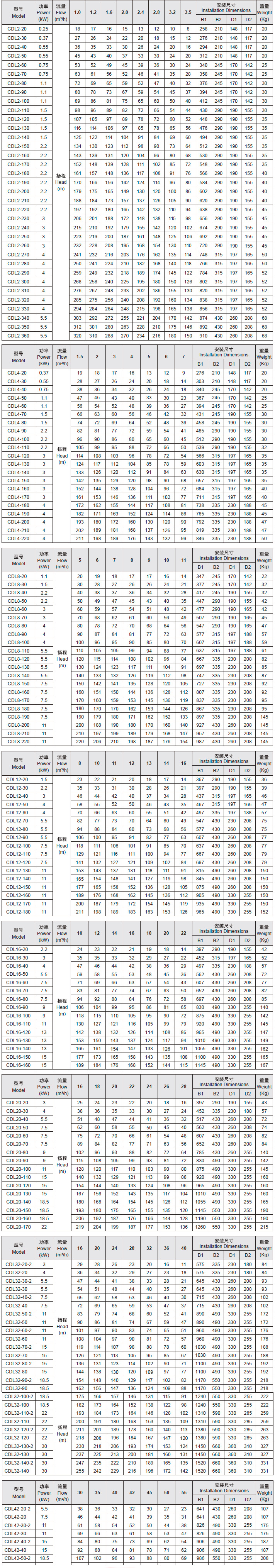

Technical data:
